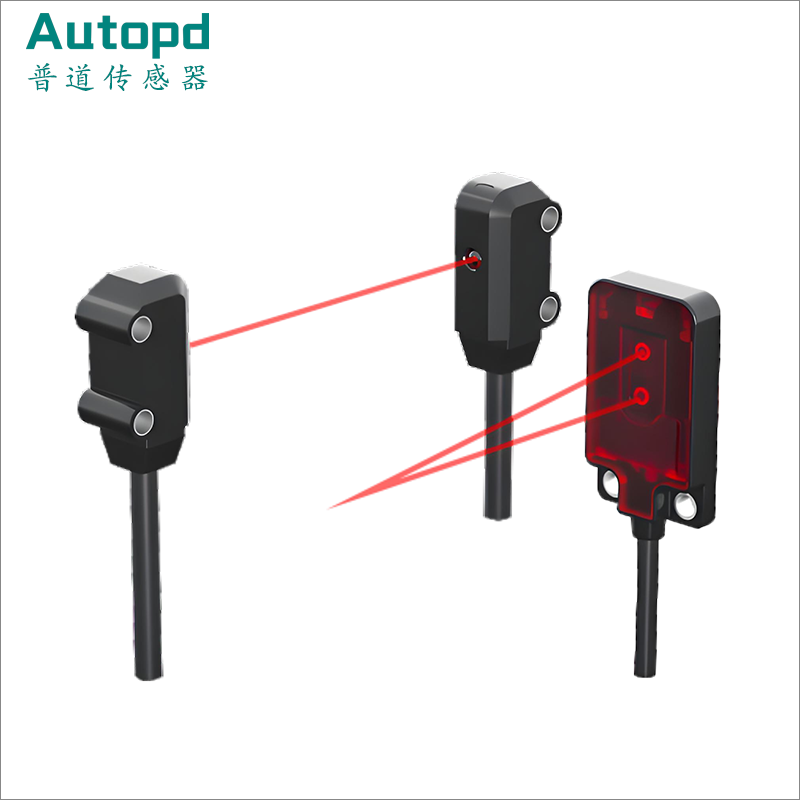

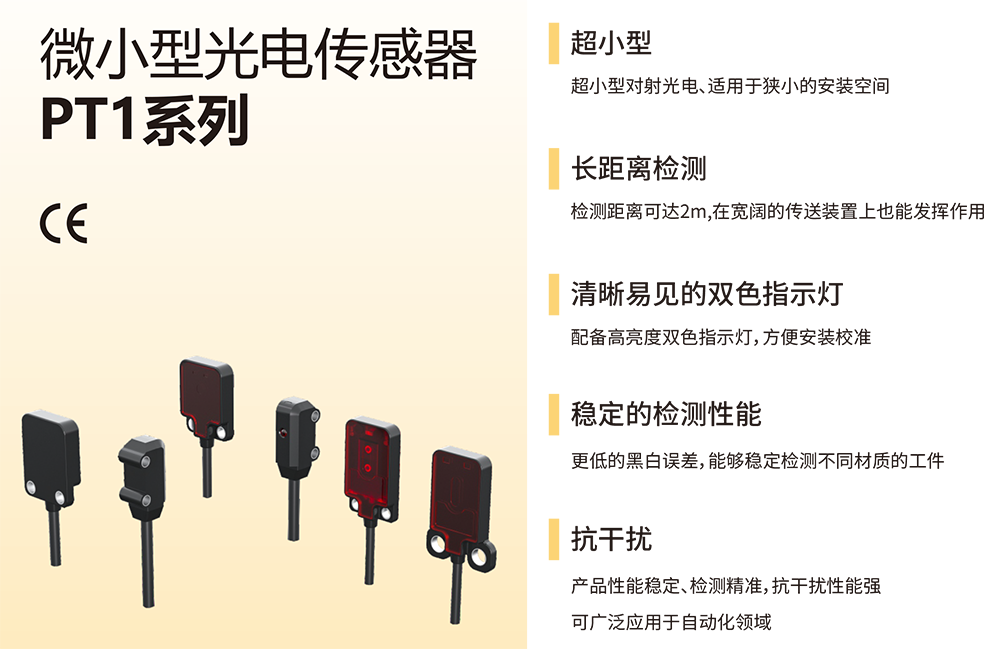

PT1系列 小型/超薄型对射/反射光电开关传感器
价格范围：¥70.00 至 ¥86.00

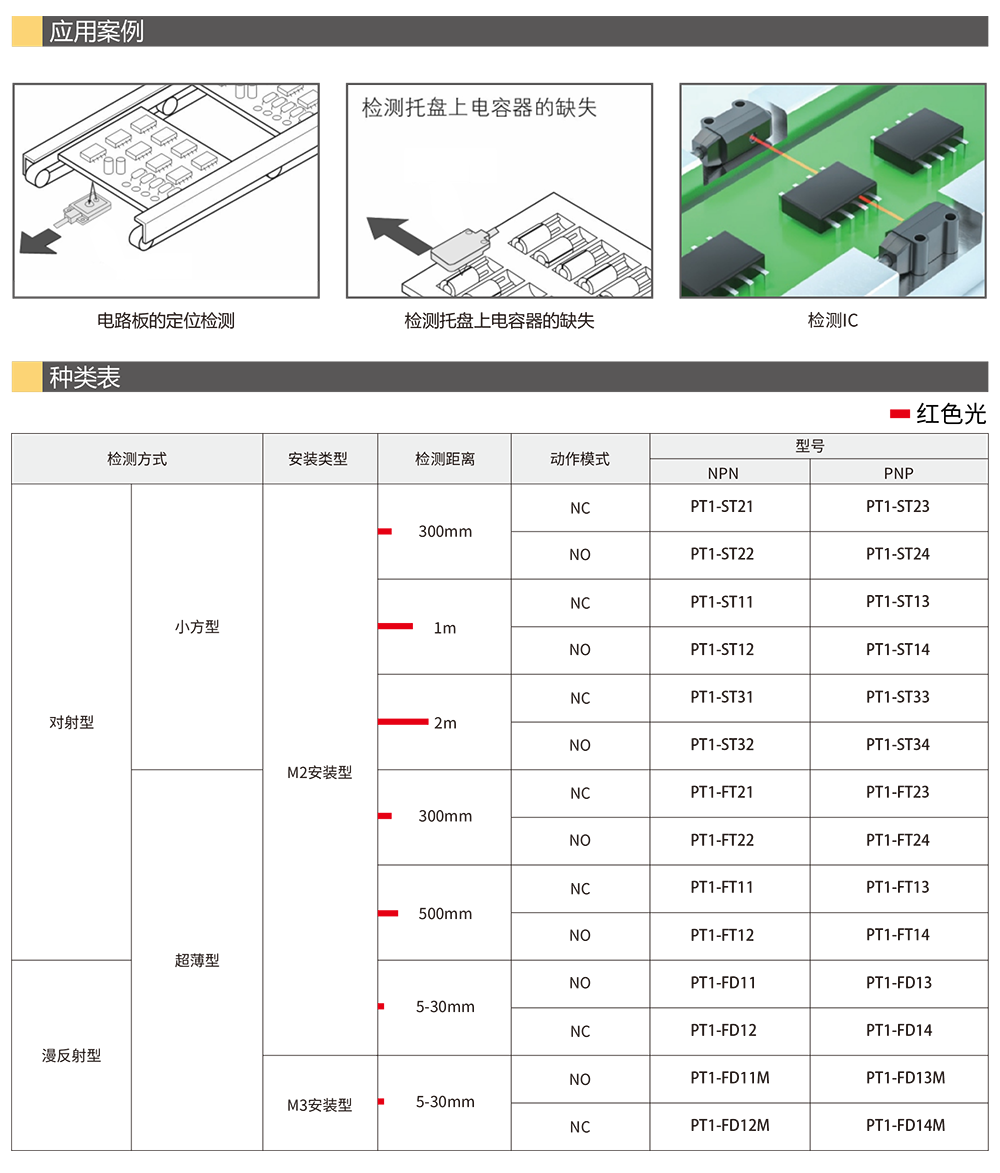

| 检测方式 | 形状 | 检测距离 | 动作模式 | 型号 | |
|---|---|---|---|---|---|
| NPN输出 | PNP输出 | ||||
| 对射型*2 (投光器+受光器) |
 |
2m(红色光) | 入光时ON | PT1-ST31 | PT1-ST33 |
| 遮光时ON | PT1-ST32 | PT1-ST34 | |||
| 1m(红色光) | 入光时ON | PT1-ST11 | PT1-ST13 | ||
| 遮光时ON | PT1-ST12 | PT1-ST14 | |||
| 300mm(红色光) | 入光时ON | PT1-ST21 | PT1-ST23 | ||
| 遮光时ON | PT1-ST22 | PT1-ST24 | |||
 |
500mm(红色光) | 入光时ON | PT1-FT11 | PT1-FT13 | |
| 遮光时ON | PT1-FT12 | PT1-FT14 | |||
| 300mm(红色光) | 入光时ON | PT1-FT21 | PT1-FT23 | ||
| 遮光时ON | PT1-FT22 | PT1-FT24 | |||
| 扩散反射形 |  |
5 ～ 30mm(红色光) | 入光时ON | PT1-FD11 | PT1-FD13 |
| 遮光时ON | PT1-FD12 | PT1-FD14 | |||
 |
入光时ON | PT1-FD11M | PT1-FD13M | ||
| 遮光时ON | PT1-FD12 M | PT1-FD14M | |||
| 产品目录 | PT1系列目录 |

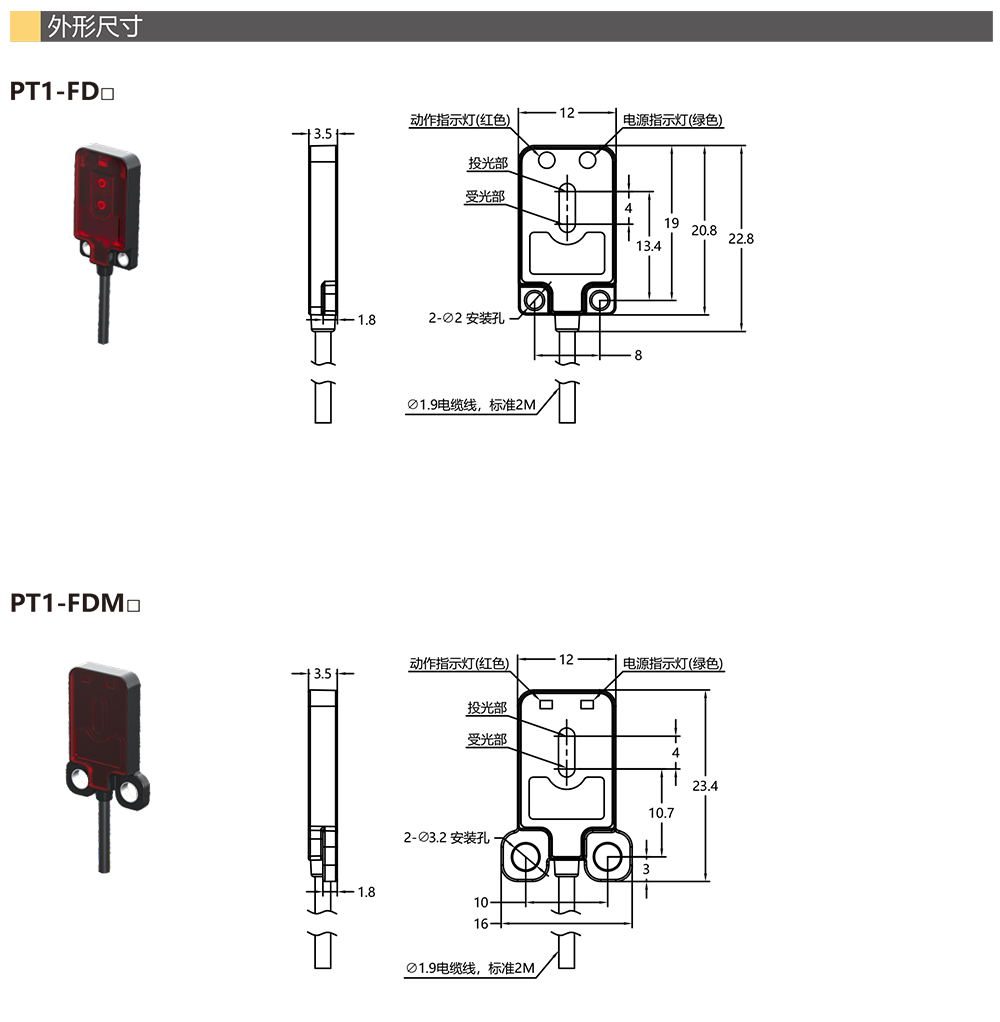

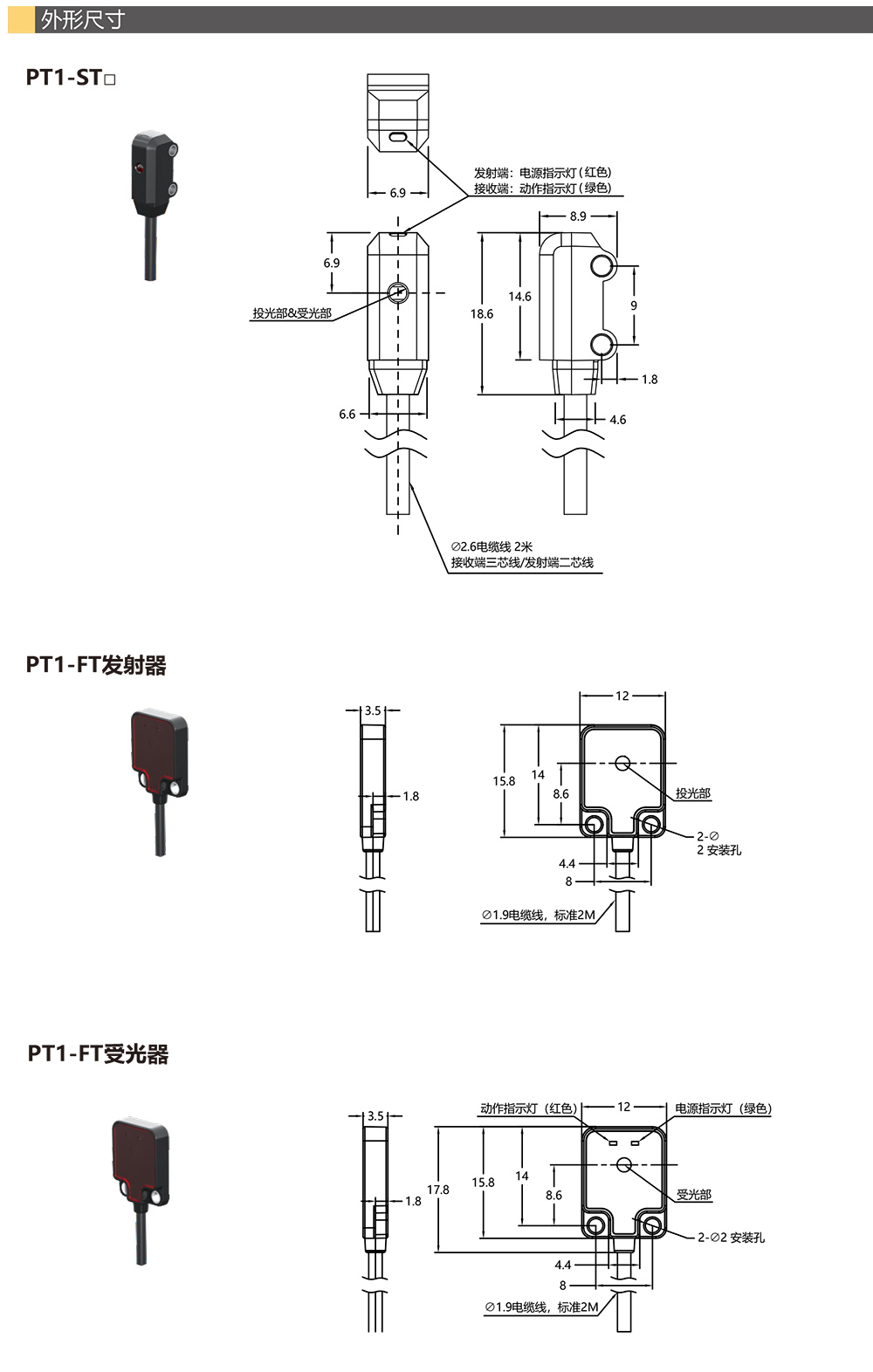

| CAD尺寸 | 3D图 PT1-FT发射器 |
| 3D图 PT1-FT接收器 | |
| 3D图 PT1-ST接收发射总装图 | |
| 3D图 PT1-FD | |
| 使用说明 | PT1系列说明书 |
| 产品认证 |
其他信息
| 重量 | 30 克 |
|---|---|
| 型号 | PT1-ST31, PT1-ST32, PT1-ST33, PT1-ST34, PT1-ST11, PT1-ST12, PT1-ST13, PT1-ST14, PT1-ST21, PT1-ST22, PT1-ST23, PT1-ST24, PT1-FT11, PT1-FT12, PT1-FT13, PT1-FT14, PT1-FT21, PT1-FT22, PT1-FT23, PT1-FT24, PT1-FD11, PT1-FD12, PT1-FD13, PT1-FD14, PT1-FD11M, PT1-FD12M, PT1-FD13M, PT1-FD14M |
评价
目前还没有评价
